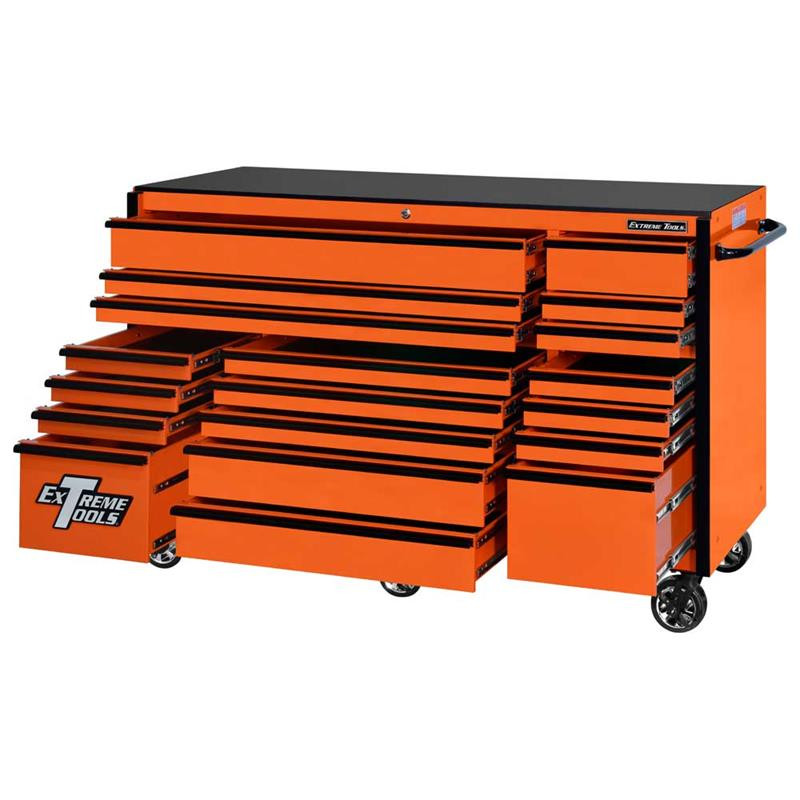

Extreme Tools 72" RX Series 19-Drawer 25" Deep Roller Cabinet, 150 lb Slides - Orange w/Black Handles

Extreme Tools® RX Series RX722519RC 72” 19 Drawer Roller Cabinet is the latest in our RX Series. This professional quality tool box features 3 extra long drawers with a support bar to provide strength and prevent warping or twisting. Patented self-latching, Quick Release drawer pulls keep drawers closed even when moving. Each drawer uses full-extension ball bearing slides that let you load 150-300* lbs per drawer (*drawers with double slides.) This huge roller cabinet gives you loads of space at an affordable price with the assurance of Extreme Tools® quality.

Key Features:

• Full-extension, ball-bearing professional-grade drawer glides, load-rated up to 150 lbs. per set (300 lbs. for drawers with double glides)
• 3 extra-wide drawers with additional internal support bars
• 4 deep drawers
• 2 extra-deep drawers
• Patented quick release, self-latching drawer handle design
• Heavy-duty steel construction, built to last
• PVC drawer liners protect the drawers and extend the life of your tool collection
• Six 6”x 2” Mag Wheel Casters (4 locking swivels/2 rigid), each one load-rated up to 900 lbs.
• PVC-coated MDF work surface that you can upgrade to the RX7225ST stainless steel work surface.
• Full-width, polished extruded aluminum drawer handles
• AkzoNobel high gloss powder coat finish available in five colors
• Tubular coded lock and keys can be keyed according to your specifications
• Heavy-duty side handle to make moving easier
• Limited 5 Year Warranty

Specifications:

• Dimensions:  72”W x 25”D x 47”H
• Weight: 661 lbs
• Finish: German AkzoNobel High Gloss Powder Coat
• Top Panel: 19 gauge
• Bottom Panel: 21 gauge
• Back Panel: 18 gauge
• Side Panels: 18 gauge
• Top Reinforce Support: 21 gauge
• Inner Panel: 19 gauge
• Drawer Back: 21 gauge
• Drawer Body: 21 gauge
• Drawer Front: 18 gauge
• Caster Channel: 12 gauge
• Drawer Load Rating: 150 lbs per set of slides, 300 lbs for the double sets of deep drawers
• Drawer Pulls: High polished AL extrusion, Quick Release, self-latching
• Cabinet Handle: Stainless steel 201 formed tubing handle
• Work Surface: PVC-coated MDF board – 15mm
• Caster Type: 6 Mag wheel casters: 4 lockable swivel, 2 rigid
• Caster Capacity: 900 lbs per caster
• Caster Size: 6" x 2"
• Shipping Weight: 835 lbs
• Warranty: Limited 5 Year

Click Here for PDF Schematic Drawing
